Colosseum Architecture

The Colosseum has four Internet-facing components that users will interact with once connected to the VPN:

Resource	Address	Description
SSH Gateway	gw.colosseum.net	This is the gateway for the user to access Colosseum resources
User Website	https://experiments.colosseum.net	This is the website which can be used by set up Colosseum resource reservations

From the SSH Gateway, users can access the following resources:

Resource	Address	Description
File Proxy Server	file-proxy	File Proxy is a server that users can use to access their Colosseum network storage, including the images directory, where SRN images may be uploaded.
SRNs	teamname-srn#	hostnames provided in reservation info Once a reservation becomes active, users may access their allocated SRNs which will have the specified container preloaded per the reservation settings.

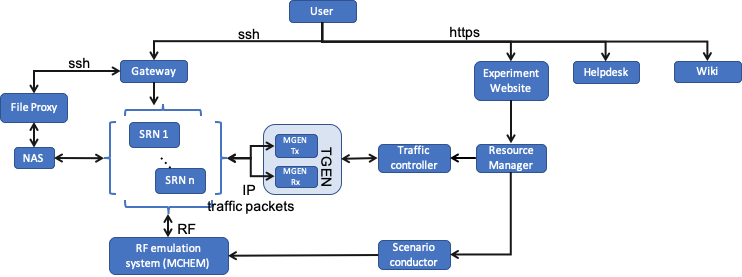

This diagram shows a logical representation of Colosseum resources available to the user perspective.
